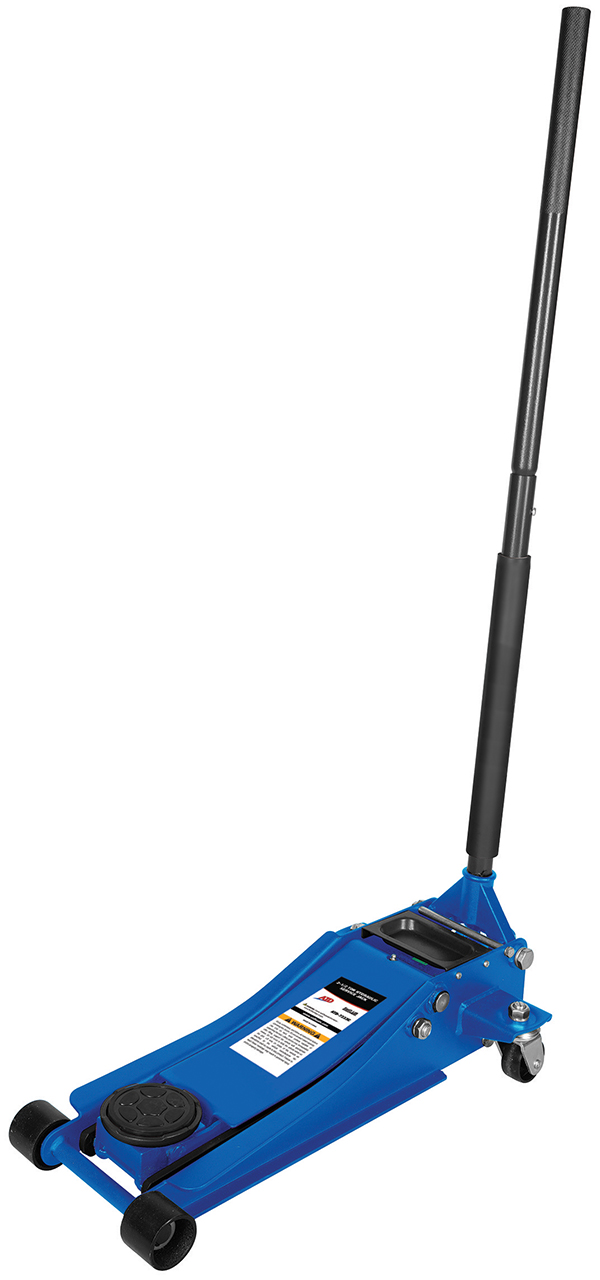

ATD-7333C 2-1/2 Ton Hydraulic Service Jack

Features:
  • ATD's exclusive Swift Lift™ Technology goes from low height to high height in a few strokes
  • Pump pistons are shielded to prevent contaminants from damaging the hydraulic system
  • Internal by-pass valve protects the hydraulic system from overpumping
  • U-Joint release mechanism provides precise control of load descent in any handle position
  • Heavy gauge construction features flanged side plates for added strength
  • Protective foam cover on handle prevents vehicle damage
  • Equipped with (2) extra-wide steel casters and (2) swivel casters with bearings for stability and easy mobility
  • Rubber saddle pad protects the vehicle from damage during lifting
  • Meets or exceeds ASME PASE 2019 standards
Specifications:
  • Capacity: 2-1/2 Tons
  • Min. Height: 3-1/8"
  • Max Height: 19-3/4"
  • Saddle Diameter: 4-1/4"
  • Handle Length: 45-1/4"
  • Jack Size: 26.3" x 13.5" x 5.9"
  • Net Weight: 69.5 lbs.

Available Downloads

ATD-7333A Owner's Manual ATD-7333B Owner's Manual ATD-7333C Owner's Manual
