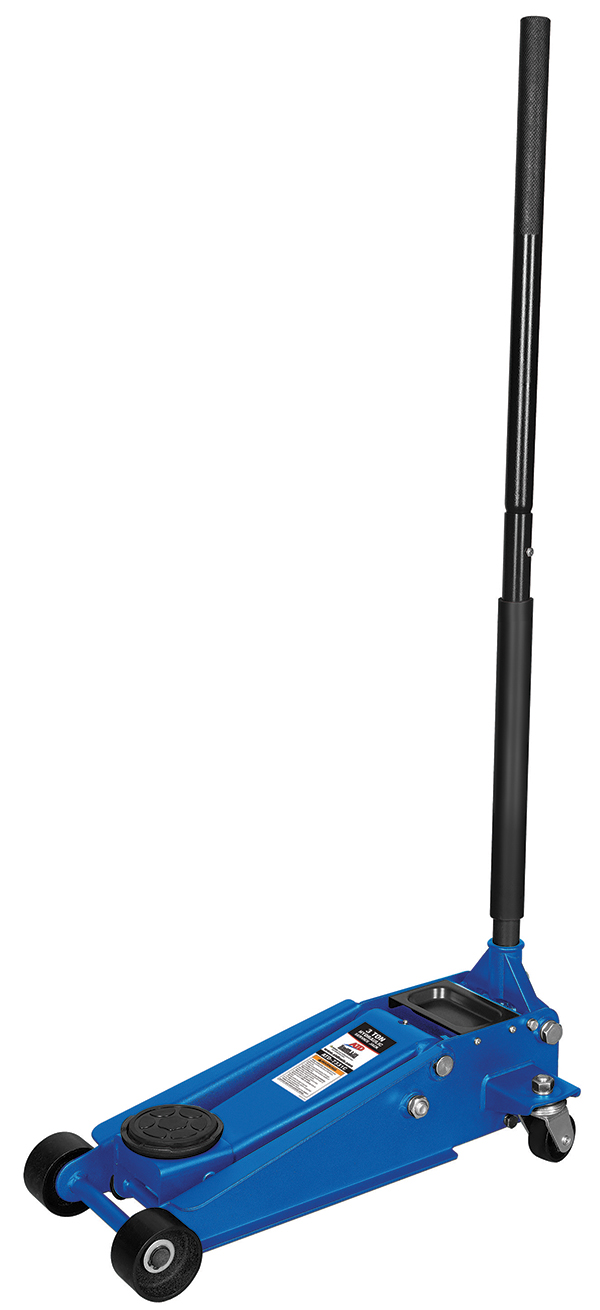

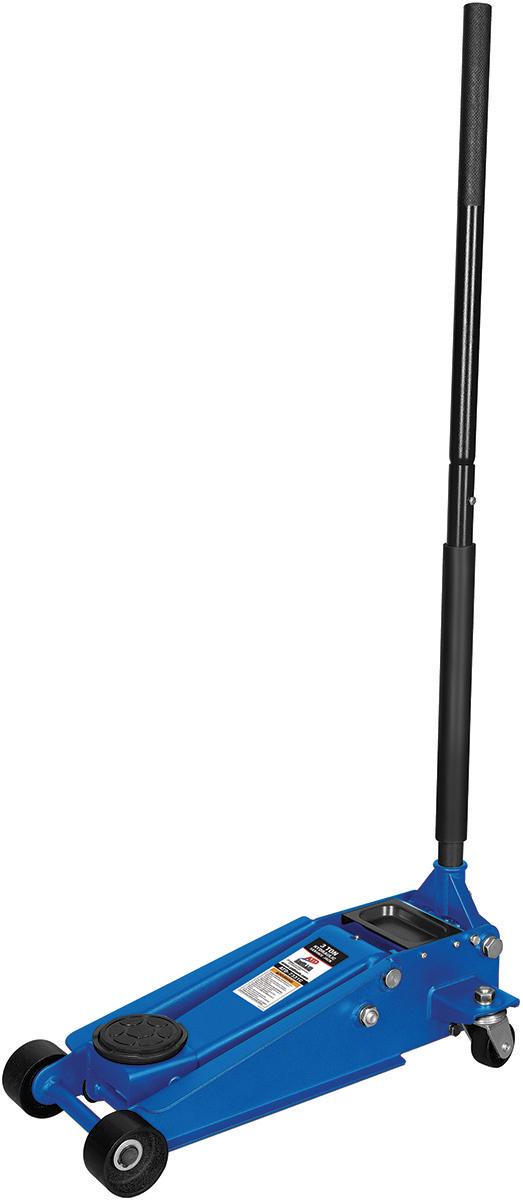

ATD-7331A 3-Ton Hydraulic Service Jack
Features:
  • Exclusive Swift Lift™ Technology offers a quicker lift for professional performance
  • Dual pump pistons are shielded to prevent contaminants from damaging the hydraulic system
  • Internal by-pass valve protects the hydraulic system from over pumping
  • U-Joint release mechanism provides precise control of load descent in any handle position
  • Heavy gauge construction features rolled edges for added strength
  • Protective foam cover on handle prevents vehicle damage
  • Upgraded casters allow greater maneuverability and easy positioning of the jack
  • Full cover rubber saddle pad protects the vehicle from damage during lifting
  • Meets or exceeds ASME PASE 2019 standards
Specifications:
  • Lifting Range: 5-1/4" to 20"
  • Jack Size: 29-3/8" L X 14-1/4" W X 6-7/8" H
  • Handle Length: 50" (2 pieces) with foam 17.72" long
  • Saddle Diameter: 5" with saddle pad (cover entire saddle)
  • Weight: NW: 89.1 Lbs (40.5 Kgs), GW: 93.5 Lbs (42.5 Kgs)

Available Downloads

ATD-7331 Owner's Manual ATD-7331A Owner's Manual
