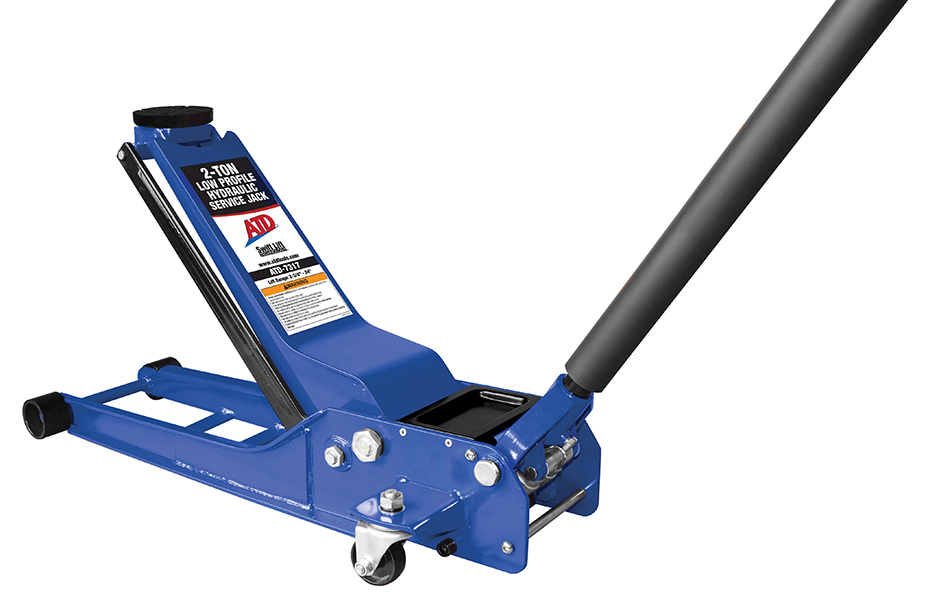

ATD-7317 2 Ton Low Profile Hydraulic Service Jack

Features:
  • 2-3/4" low height and deep reach lift arm is ideal for use on low ground clearance vehicles
  • ATD's exclusive Swift Lift™ Technology offers a quicker lift for professional performance
  • Dual pump pistons are shielded to prevent contaminants from damaging the hydraulic system
  • Internal by-pass valve protects the hydraulic system from over pumping
  • U-Joint release mechanism provides precise control of load descent in any handle position
  • Heavy gauge construction features rolled edges for added strength
  • Protective foam cover on handle prevents vehicle damage
  • Upgraded casters allow greater maneuverability and easy positioning of the jack
  • Full cover rubber saddle pad protects the vehicle from damage during lifting
Specifications:
  • Capacity: 2 Tons
  • Min Height: 2-3/4"
  • Max Height: 24"
  • Handle Length: 49-1/4"
  • Front Casters: 2-1/2" diameter x 2" width
  • Saddle Diameter: 4" with full saddle pad
  • Jack Size: 36" (L) x 15-1/8" (W) x 6-1/4" (H)
  • Weight: 106 lbs.
  • ASME/PASE 2014 Certified

Available Downloads

Owner's Manual
