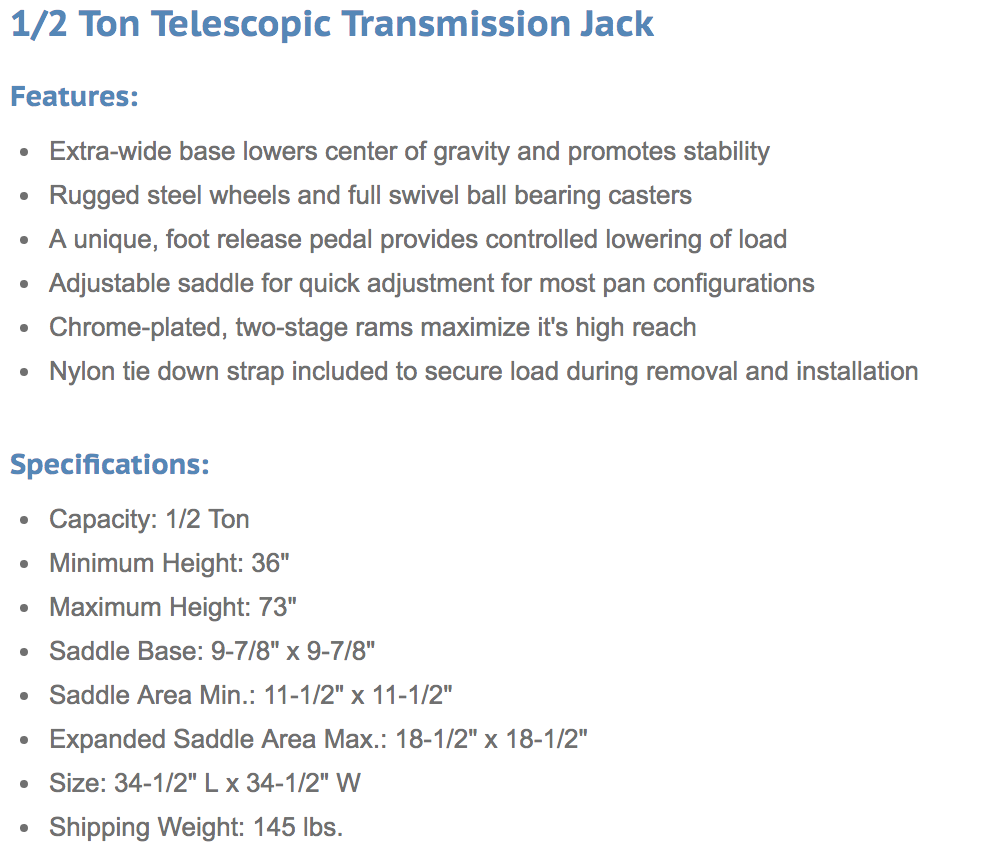

ATD-7432 1/2 Ton Telescopic Transmission Jack
Features:
  • Extra-wide base lowers center of gravity and promotes stability
  • Rugged steel wheels and full swivel ball bearing casters
  • A unique, foot release pedal provides controlled lowering of load
  • Adjustable saddle for quick adjustment for most pan configurations
  • Chrome-plated, two-stage rams maximize it's high reach
  • Nylon tie down strap included to secure load during removal and installation
Specifications:
  • Capacity: 1/2 Ton
  • Minimum Height: 36"
  • Maximum Height: 73"
  • Saddle Base: 9-7/8" x 9-7/8"
  • Saddle Area Min.: 11-1/2" x 11-1/2"
  • Expanded Saddle Area Max.: 18-1/2" x 18-1/2"
  • Size: 34-1/2" L x 34-1/2" W
  • Shipping Weight: 145 lbs.

Available Accessories

ATD-7470 Fuel Tank Adapter

Available Downloads

ATD-7432 Owner's Manual ATD-7470 Owner's Manual
