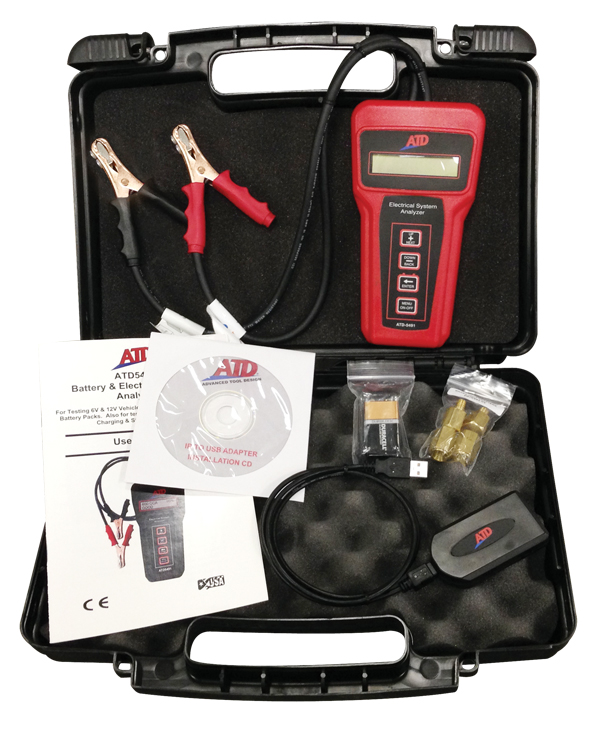

ATD-5491 6V & 12V Electronic Battery & 6/12/24/36V Charging/Starting Systems Tester

Features:
  • Tests all 6 & 12V Lead Acid, AGM and Gel batteries
  • Tests 6/12/24/36V starting/charging systems
  • Displays both percent of capacity and cold cranking amps
  • IR printer interface for remote printing
  • Detects and displays alternator ripple and bad cells
  • Tests series (24V) and parallel batteries
  • Patented Conductance Technology
  • Reverse Polarity Protection
  • Loose Lead Detection
  • Includes RoHS compliant post adapters
  • Made in the USA
Specifications:
  • Battery Size Range: 100 to 3500 CCA
  • Battery Voltage Range: 6 & 12V
  • DC Voltage Range/Accuracy 0-49V/+/- 2% of reading
  • Display: 2 Line LCD
  • Cable Length: 2 ft.
  • Languages: English, Spanish, French & German
  • International Units Displayed: EN, EIC, DIN, JIS
  • Ah displayed for 6 Volt batteries only
  • Internal Battery: 9V (included)
