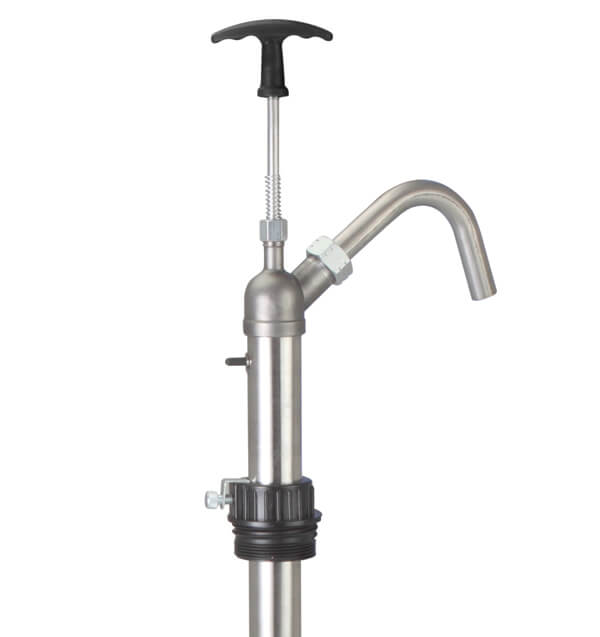

ATD-5062 Stainless Steel 55-Gallon Vertical Lift Pump

Features:
  • Self priming vertical lift pump with exceptional chemical resistance
  • Pump body made of 316 Stainless Steel
  • PTFE piston makes it suitable for use with wide variety of media
  • Pump includes a 2" bung adaptor with dual threads for use with metal and plastic drums
  • Built-in lock nut for attaching grounding wires
  • Designed for use with 55 Gallon drum
  • Flow control tube can be inserted into lift handle to restrict the flow rate
  • Flow Rate : up to 25 oz. (750 ml) / stroke
Specifications:
  • Max Viscosity: SAE 40
  • Max Temperature: 60 C (140 F)
Recommended Use:
  • Photographic chemicals/Solvents
  • Diesel
  • Kerosene
  • Thinners
  • Mineral Spirits
  • Acetone
  • Benzene
  • Naptha
  • Urea
  • DEF
  • Adblue
  • Light oil (up to SAE 40)
Do Not Use with:
  • Heavy oils

Available Downloads

Owner's Manual



Other Manual Barrel & Pail Pumps Available
