ATDTLTLFT Automotive Tilt Lift
Automotive Tilt Lift
Automotive Tilt Lift
Automotive Tilt Lift

Features:

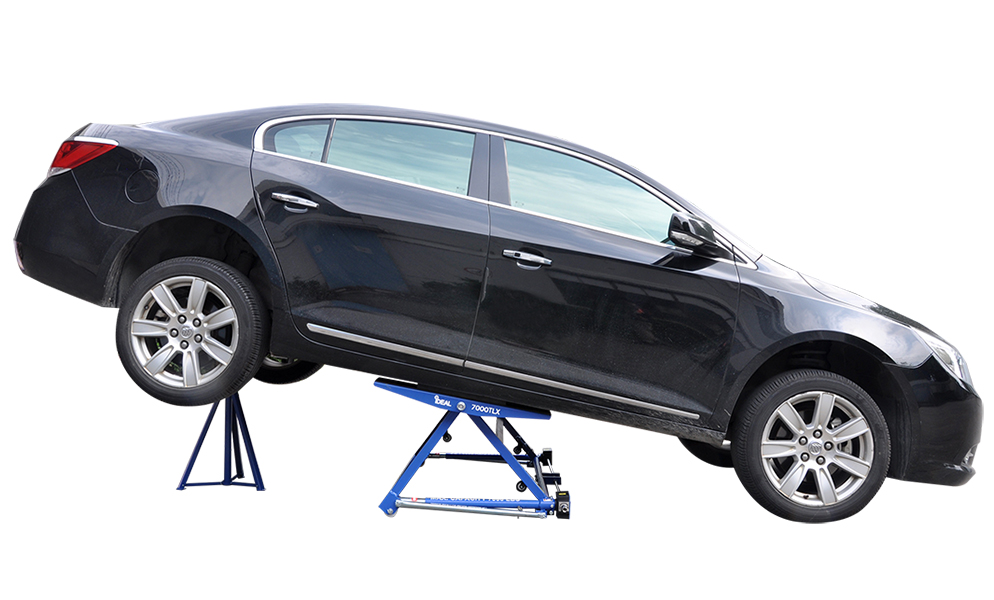

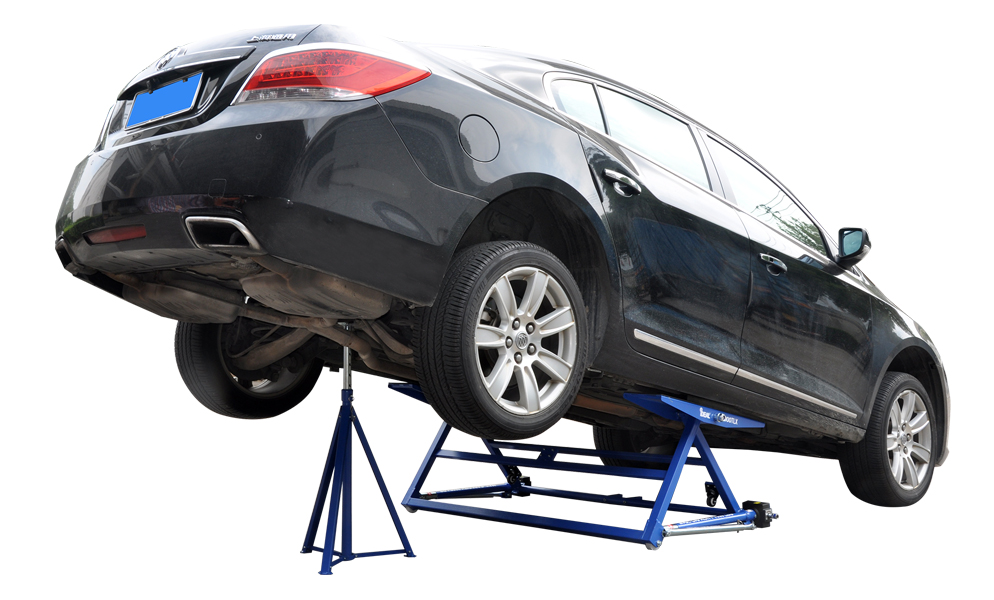

  • Safely lifts and tilts unibody vehicles with 48" to 61" frame rail widths
  • Allows for comfortable work height and undercarriage access
  • Adds inspection and service capabilities for repair shops
  • Industry-leading 7,000 lbs. capacity
  • Handheld drill operation - no hydraulics
  • Low-profile, lightweight, portable and storable
  • Exclusive dual independent safety lock bars and pins allow for full operation from either side of the lift
  • Twin dual-action precision gear drives
  • Adjustable width platforms
  • Durable powder-coat finish
  • Weather resistant for indoor or outdoor use

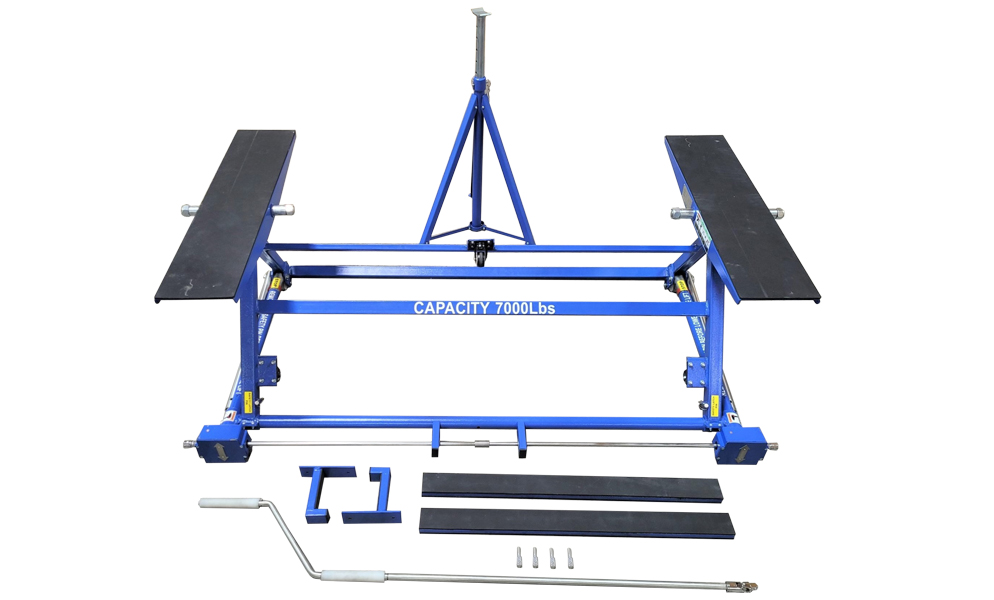

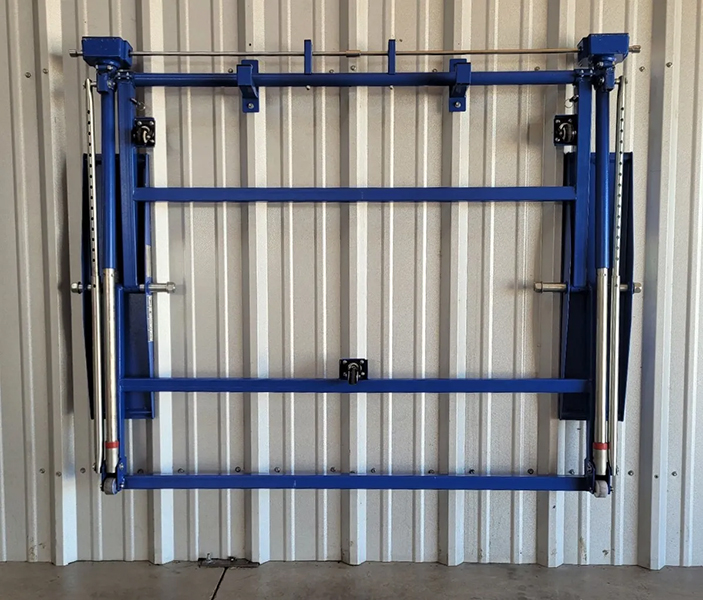

  • Includes jack stand, platform risers, drill-drive adapters, wall mount brackets, and manual handle with socket adapter
Specifications:
  • Max Lift Height: 22-1/2" (23-1/2" w/Risers)
  • Lift Dimensions: 51-3/4" L x 64-3/8" W x 4-1/2" H
  • Lift Speed: 30-40 sec.
  • Platform Length and Width: 31-1/2" x 7-1/4"
  • Outside - Platforms Widths: 59-1/4" to 63-3/4"
  • Inside - Platforms Widths: 44-1/2" to 49-1/4"
  • Power (Corded Drill): 10 Amp, 120V AC, 1/2"
  • Ship Weight: 214 lbs.
Optional Accessories:
  • ATDTLTLFTFR - Tilt Lift Floor Rail Kit
    • Required for insufficient floor surfaces, such as uneven or rough floors
    • Reduces lift's wheel travel marks for polished or epoxied-type floors
