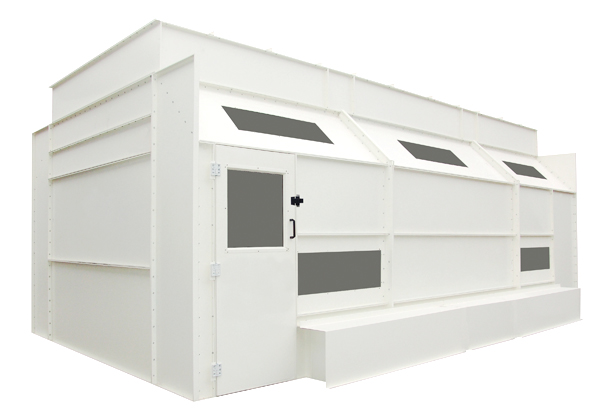

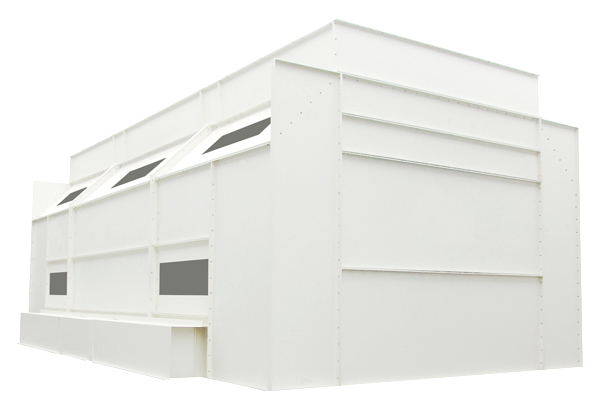

ATDPB26DD3P 3 Phase Side Down Draft Paint Spray Booth
3 Phase Side Down Draft Paint Spray Booth

ATDPB26DD3P (3 PHASE)

ATDPB26DD1P (1 PHASE)

Features:
  • Commercial grade hip panel design with control panel
  • High quality intake and exhaust filters
  • Tri-fold and personnel doors with viewing windows
  • Powder coated finish (inside and outside)
  • (10) High quality UL listed lighting fixtures (light bulbs included)
  • 5/16" nut and bolt installation
  • (2) 8 ft. exhaust chimney stack assemblies
  • Precision punched 18 Ga. panel construction
  • (2) Dayton tube-axial fan - 2 Hp, 3PH
  • Canopy plenum kit (optional)
Specifications:
  • Inside Dimensions: 26' L x 14' W x 9'-3" H
  • Outside Dimensions: 26'-4" L x 17'-8" W x 9'-5" H
  • Fan/Motor: (2) 24" Tube-Axial Fan; 2 Hp, 3PH, 230/460V AC, 60 Hz; Non-Spark, NEMA Rated
  • CFM: 14,000 @ .5 Static Pressure
  • Lighting: (10) T-8 Light Fixtures, (4) Bulbs
  • Canopy plenum kit (optional)
  • 9 ft. exhaust duct kit (optional)
Available Accessories:
  • ATDPBC26DD - Optional Canopy
  • ATDPB25DK - Optional 25" Exhaust Duct (X2)
