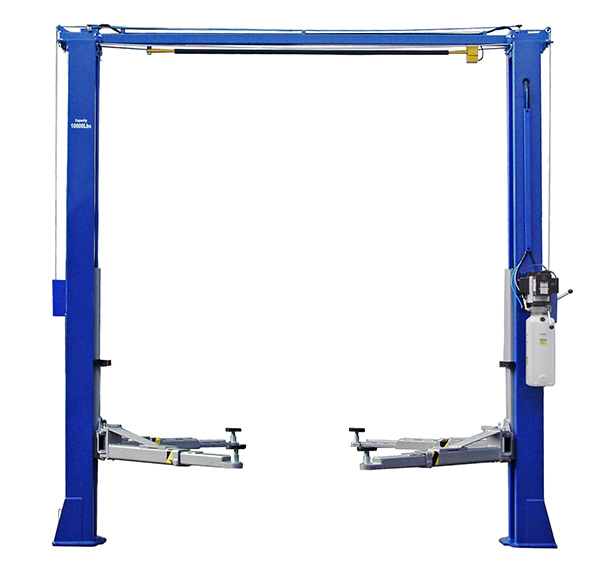

ATD2P10BSALI 10,000 lbs. Two Post Clear Floor ALI / ETL Certified Lift
Features:
  • Direct drive
  • Single point lock release
  • ALI / ETL Certified
  • Low profile arms
  • Spin up pads
  • Includes power unit
  • (3) stage front arms
  • Stackable truck adapters included - 2" & 4"
Specifications:
  • Capacity: 10,000 lbs.
  • Height Overall: 144"
  • Width Overall w/ Power Unit: 145-1/2"
  • Maximum Lift Height: 71"
  • Inside Column Width: 116"
  • Minimum Pad Height: 4"
  • Drive Through Clearance: 104"
  • Lifting Speed: 50S
  • Asymmetric / Symmetric: Asymmetric
  • Clear Floor / Floor Plate: Clear Floor

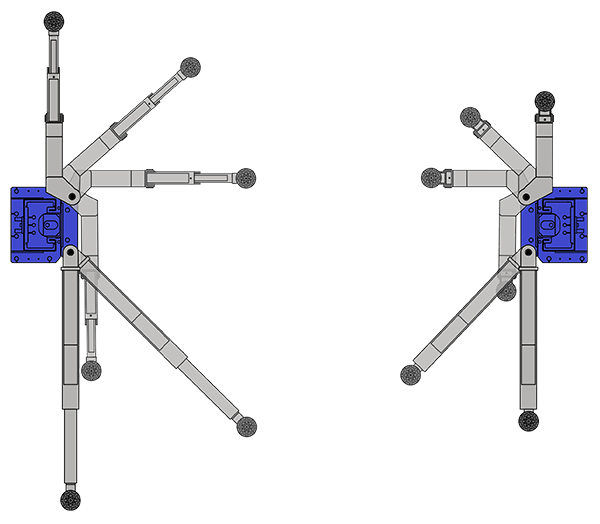

  • Front Arm Reach - min/max: 23"-58"
  • Rear Arm Reach - min/max: 41"-58"
  • Max Load per Arm: 2,500 lbs.
  • Cable Diameter: 3/8"
  • Column Size: 7-5/8" x 12-3/8"
  • Column Steel Thickness: 5mm
  • Carriage Steel Thickness: 8.5mm
  • Arm Steel Thickness: 8mm
  • Ship Weight: 1,705 lbs.
  • Power: 220V, 20A, 1PH
