ATD-7915 75 SCFM Refrigerated Air Dryer NEW!

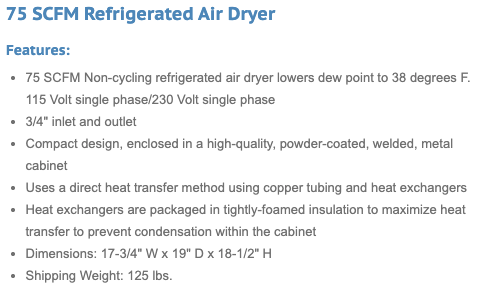

Features:
  • 75 SCFM Non-cycling refrigerated air dryer lowers dew point to 38 degrees F. 115 Volt single phase/230 Volt single phase
  • 3/4" inlet and outlet
  • Compact design, enclosed in a high-quality, powder-coated, welded, metal cabinet
  • Uses a direct heat transfer method using copper tubing and heat exchangers
  • Heat exchangers are packaged in tightly-foamed insulation to maximize heat transfer to prevent condensation within the cabinet
  • Dimensions: 17-3/4" W x 19" D x 18-1/2" H

Available Downloads

Owner's Manual
