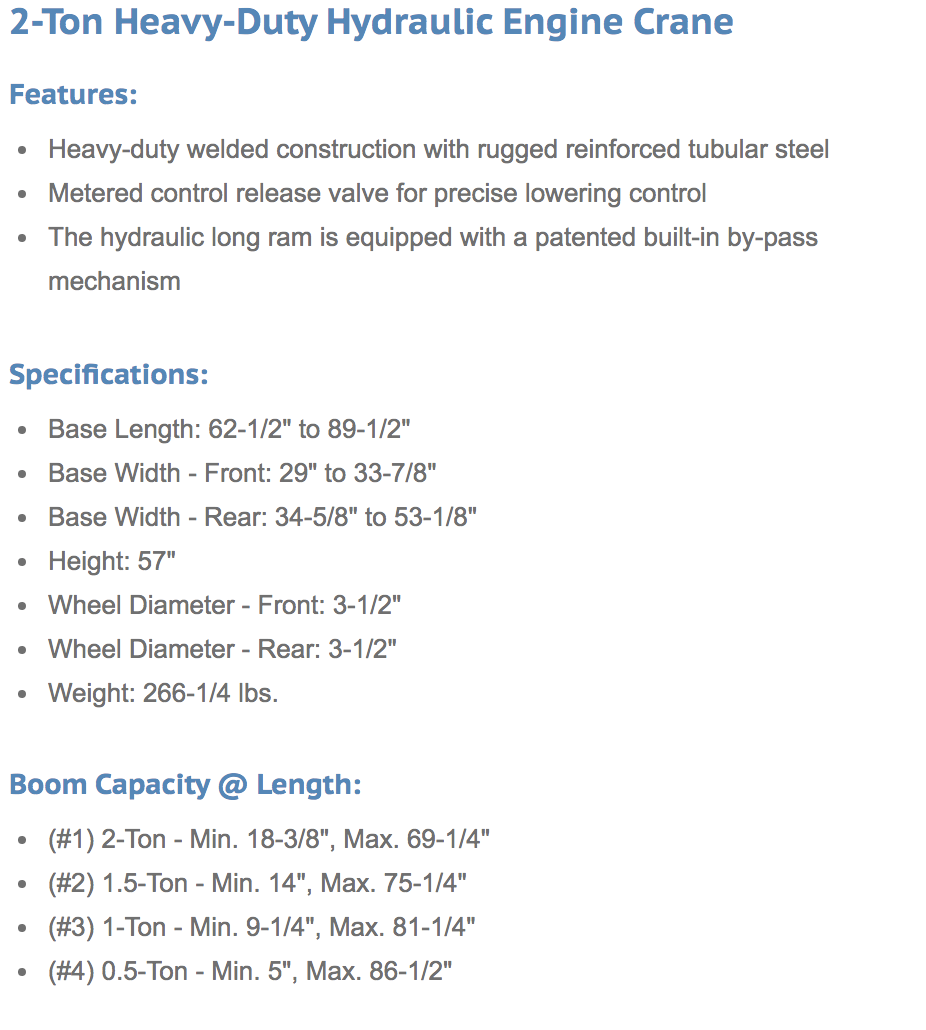

ATD-7484 2 Ton Heavy-Duty Hydraulic Engine Crane

Features:
  • Heavy-duty welded construction with rugged reinforced tubular steel
  • Metered control release valve for precise lowering control
  • The hydraulic long ram is equipped with a patented built-in by-pass mechanism
Specifications:
  • Base Length: 62-1/2" to 89-1/2"
  • Base Width - Front: 29" to 33-7/8"
  • Base Width - Rear: 34-5/8" to 53-1/8"
  • Height: 57"
  • Wheel Diameter - Front: 3-1/2"
  • Wheel Diameter - Rear: 3-1/2"
  • Weight: 266-1/4 lbs.
Boom Capacity @ Length:
  • (#1) 2-Ton - Min. 18-3/8", Max. 69-1/4"
  • (#2) 1.5-Ton - Min. 14", Max. 75-1/4"
  • (#3) 1-Ton - Min. 9-1/4", Max. 81-1/4"
  • (#4) 0.5-Ton - Min. 5", Max. 86-1/2"
