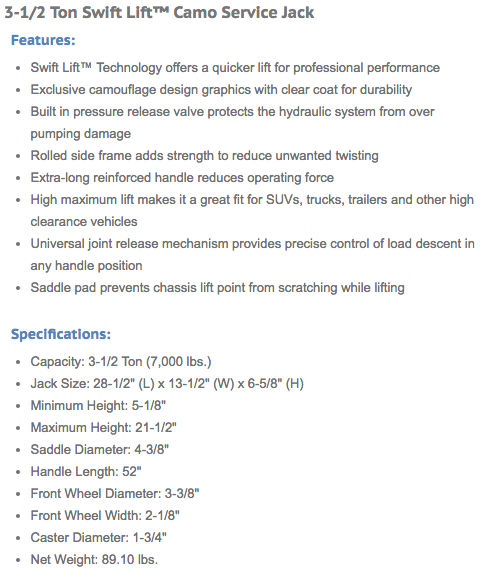

ATD-7314 3-1/2 Ton Swift Lift™ Camo Service Jack

  • Swift Lift™ Technology offers a quicker lift for professional performance
  • Exclusive camouflage design graphics with clear coat for durability
  • Built in pressure release valve protects the hydraulic system from over pumping damage
  • Rolled side frame adds strength to reduce unwanted twisting
  • Extra-long reinforced handle reduces operating force
  • High maximum lift makes it a great fit for SUVs, trucks, trailers and other high clearance vehicles
  • Universal joint release mechanism provides precise control of load descent in any handle position
  • Saddle pad prevents chassis lift point from scratching while lifting
  • Capacity: 3-1/2 Ton (7,000 lbs.)
  • Jack Size: 28-1/2" (L) x 13-1/2" (W) x 6-5/8" (H)
  • Minimum Height: 5-1/8"
  • Maximum Height: 21-1/2"
  • Saddle Diameter: 4-3/8"
  • Handle Length: 52"
  • Front Wheel Diameter: 3-3/8"
  • Front Wheel Width: 2-1/8"
  • Caster Diameter: 1-3/4"
  • Net Weight: 89.10 lbs.

Available Downloads

Owner's Manual
