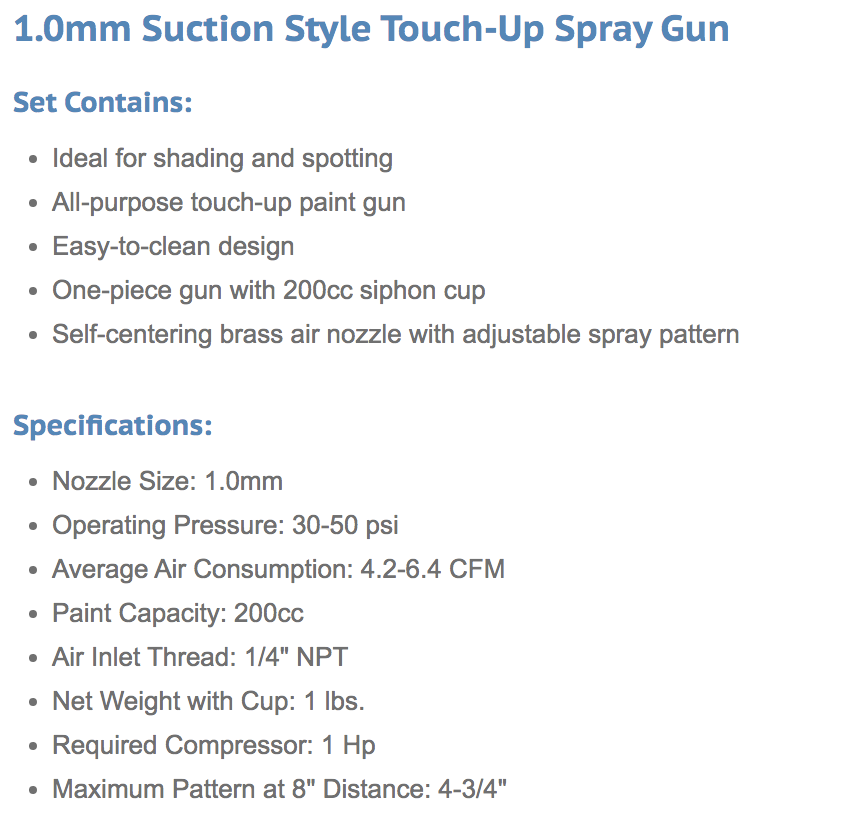

ATD-6812 1.0mm Suction Style Touch-Up Spray Gun
Set Contains:
  • Ideal for shading and spotting
  • All-purpose touch-up paint gun
  • Easy-to-clean design
  • One-piece gun with 200cc siphon cup
  • Self-centering brass air nozzle with adjustable spray pattern
Specifications:
  • Nozzle Size: 1.0mm
  • Operating Pressure: 30-50 psi
  • Average Air Consumption: 4.2-6.4 CFM
  • Paint Capacity: 200cc
  • Air Inlet Thread: 1/4" NPT
  • Net Weight with Cup: 1 lbs.
  • Required Compressor: 1 Hp
  • Maximum Pattern at 8" Distance: 4-3/4"
