ATD-5825 5 Ton Flat Body Cylinder Kit

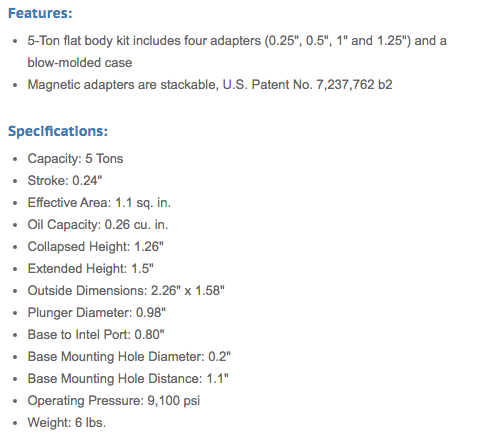

Features:
  • 5-Ton flat body kit includes four adapters (0.25", 0.5", 1" and 1.25") and a blow-molded case
  • Magnetic adapters are stackable, U.S. Patent No. 7,237,762 b2
Specifications:
  • Capacity: 5 Tons
  • Stroke: 0.24"
  • Effective Area: 1.1 sq. in.
  • Oil Capacity: 0.26 cu. in.
  • Collapsed Height: 1.26"
  • Extended Height: 1.5"
  • Outside Dimensions: 2.26" x 1.58"
  • Plunger Diameter: 0.98"
  • Base to Intel Port: 0.80"
  • Base Mounting Hole Diameter: 0.2"
  • Base Mounting Hole Distance: 1.1"
  • Operating Pressure: 9,100 psi
  • Weight: 6 lbs.
