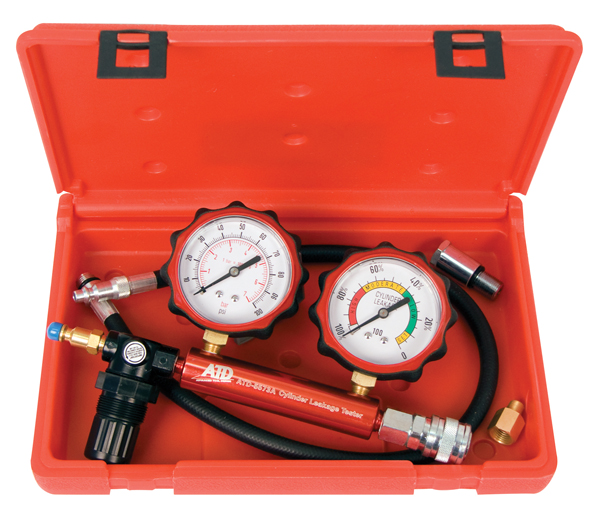

ATD-5573A 2 Gauge Cylinder Leakage Tester

Features:
  • New design incorporates a round, anodized body with permanent laser etching for a sleeker appearance
  • New industrial interchange quick coupler allows use with most standard compression test adapters on the market (some adapters require removal of the valve core)
  • New larger, easier to read leakage gauge has one multi-colored band for measuring low, moderate and high leakage, and a scale range from 0-100% with a redesigned gauge boot for added protection
  • New larger, easier to read pressure gauge has a dual scale dial with ranges from 0-100 psi and 0-7 BAR with a redesigned gauge boot for added protection
  • 2 gauge design allows for monitoring of input air-line pressure to ensure accurate testing
  • Easy to use regulator allows for precise control of input air pressure
  • Helps to pin-point problems indicated by a compression test or cylinder balance test
  • Uses shop air to determine leakage source and the amount of leakage measured in percentage of loss
  • Reducer adapter allows use of any 1/4" male quick connect plug
Includes:
  • New M14 short thread adapter on a 26" hose assembly
  • M14 long thread solid adapter
  • 1/4" female x 1/8" male reducer adapter
  • Available Downloads

    Owner's Manual
