ATD-277
117 Pc. Tap and Die Set with Drill Bits
Features:
Titanium coated alloy steel for durability and precision threading

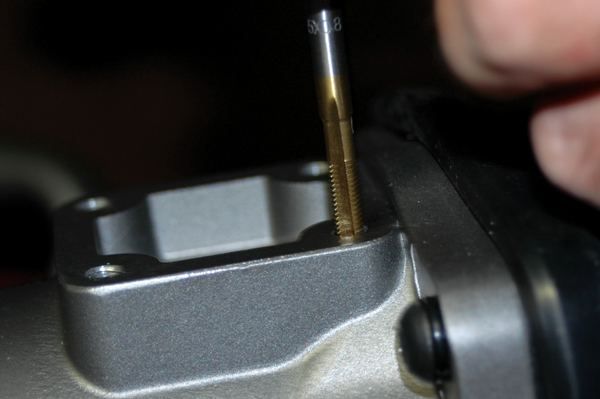

(34) plug tap sizes are perfect for general purpose threading
(34) hexagon die sizes are ideal for general maintenance and repair work
Hexagon dies allow a socket or wrench to be used in areas with limited space
Molded storage case included
(36) High-speed steel drill bits
Drill to tap size interchange chart
(5) Spiral flute screw and bolt extractors
(6) Machine Screw Plug Taps and 5/8" Hex Dies:
4-40 NC
6-32 NC
8-32 NC
10-24 NC
10-32 NF
12-24 NC
(10) Fractional Plug Taps and 1" Hex Dies:
1/4"-20 NC
1/4"-28 NF
5/16"-18 NC
5/16"-24 NF
3/8"-16 NC
3/8"-24 NF
7/16"-14 NC
7/16"-20 NF
1/2"-13 NC
1/2"-20 N
(6) Metric Plug Taps and 5/8" Hex Dies:
3mm-0.50
4mm-0.70
4mm-0.75
5mm-0.80
5mm-0.90
6mm-1.00
(10) Metric Plug Taps and 1" Hex Dies:
7mm-1.00
8mm-1.00
8mm-1.25
9mm-1.00
9mm-1.25
10mm-1.25
10mm-1.50
11mm-1.50
12mm-1.50
12mm-1.75
(2) Pipe Thread Plug Taps and 1" Hex Dies:
1/8"-27 NPT
1/8"-28 BSP
(1 each) High-Speed Drill Bits:
#3
#7
#9
#16
#19
#20
#21
#25
#29
#30
#36
#39
#43
Letter B
Letter F
Letter H
Letter I
Letter J
Letter O
Letter Q
Letter R
Letter S
Letter U
Letter Z
5/64"
7/64"
5/32"
1/4"
19/64"
5/16"
21/64"
3/8"
25/64"
13/32"
27/64"
29/64"
(1 each) Spiral Flute Screw and Bolt Extractors:
EX-1
EX-2
EX-3
EX-4
EX-5
(1 each) of the following:

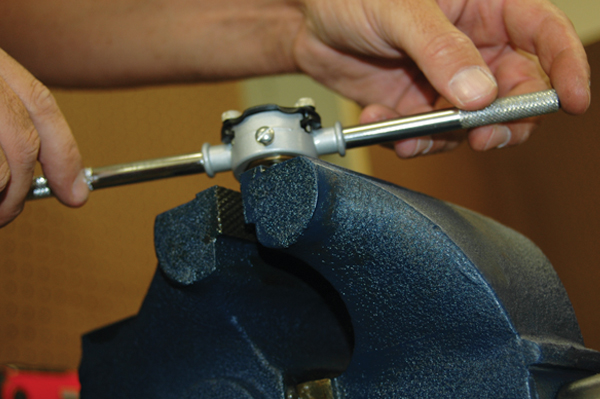

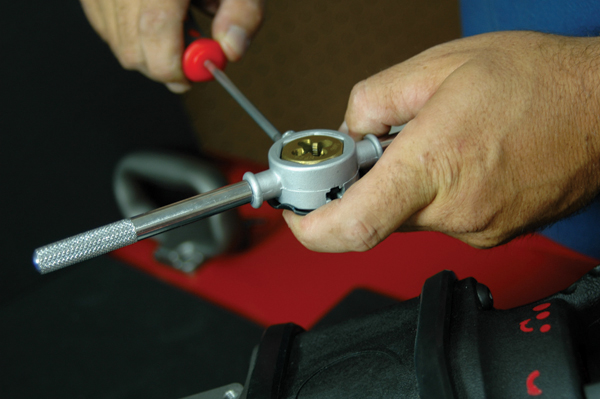

Adjustable Die Stock 1" Dies
Plain Die Stock 5/8" Dies
Adjustable Handle Tap Wrench
Taps No. 0 to 1/2"
Two-In-One Tap Wrench Taps 1/4" to 1/2"
T-Handle Tap Wrench Taps No. 0 to 1/4"
Metric Thread Pitch Gauge
Fractional Thread Pitch Gauge
Available Downloads
Contents
WARNING!
California Residents:
Proposition 65 Information
Other Tap & Die Sets Available
ATD-276
76 Pc. Tap and Die Set
