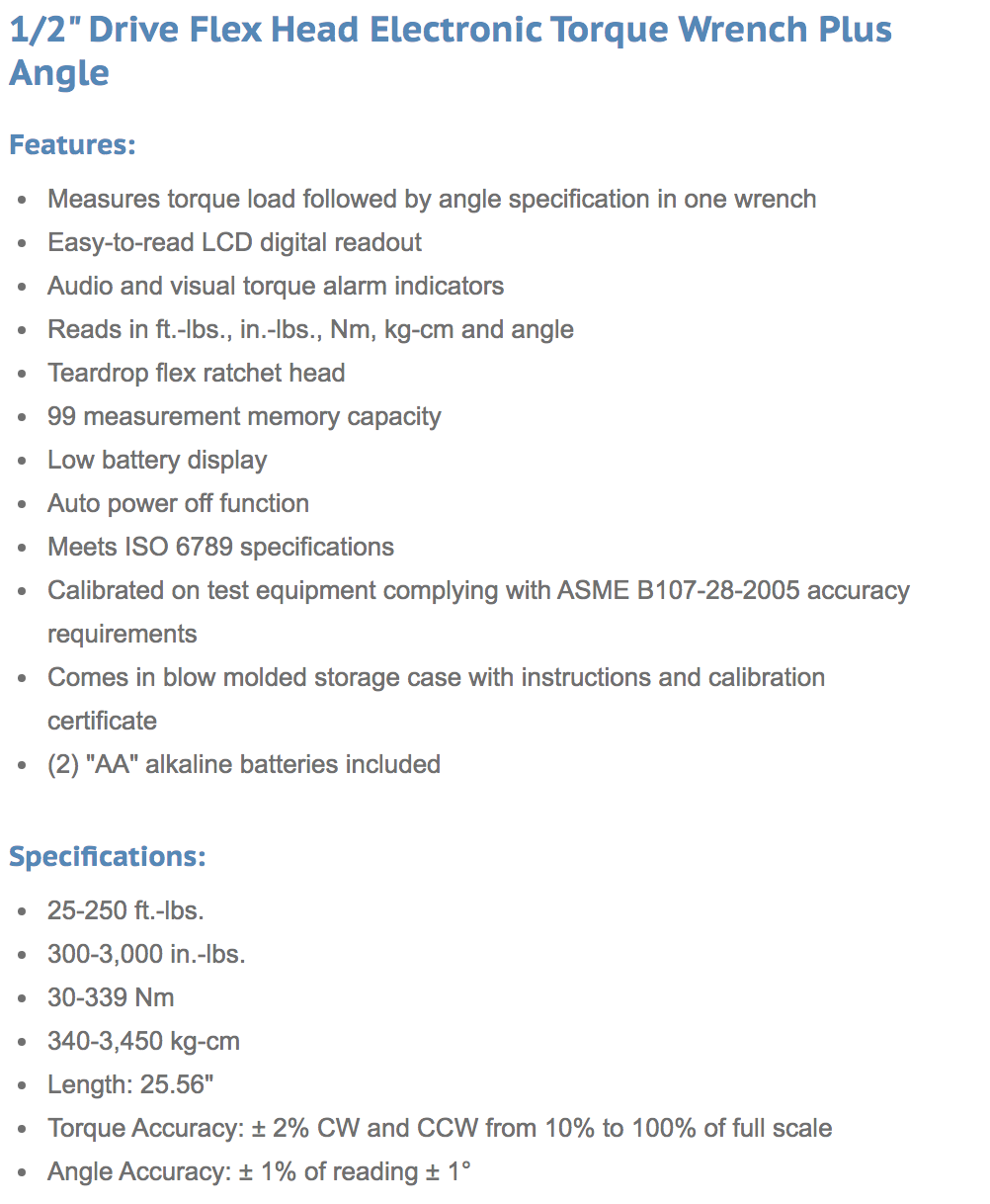

ATD-12560 1/2" Drive Flex Head Electronic Torque Wrench Plus Angle

Features:
  • Measures torque load followed by angle specification in one wrench
  • Easy-to-read LCD digital readout
  • Audio and visual torque alarm indicators
  • Reads in ft.-lbs., in.-lbs., Nm, kg-cm and angle
  • Teardrop flex ratchet head
  • 99 measurement memory capacity
  • Low battery display
  • Auto power off function
  • Meets ISO 6789 specifications
  • Calibrated on test equipment complying with ASME B107-28-2005 accuracy requirements
  • Comes in blow molded storage case with instructions and calibration certificate
  • (2) "AA" alkaline batteries included
Specifications:
  • 25-250 ft.-lbs.
  • 300-3,000 in.-lbs.
  • 30-339 Nm
  • 340-3,450 kg-cm
  • Length: 25.56"
  • Torque Accuracy: 2% CW and CCW from 10% to 100% of full scale
  • Angle Accuracy: 1% of reading 1

Available Downloads

Owner's Manual
