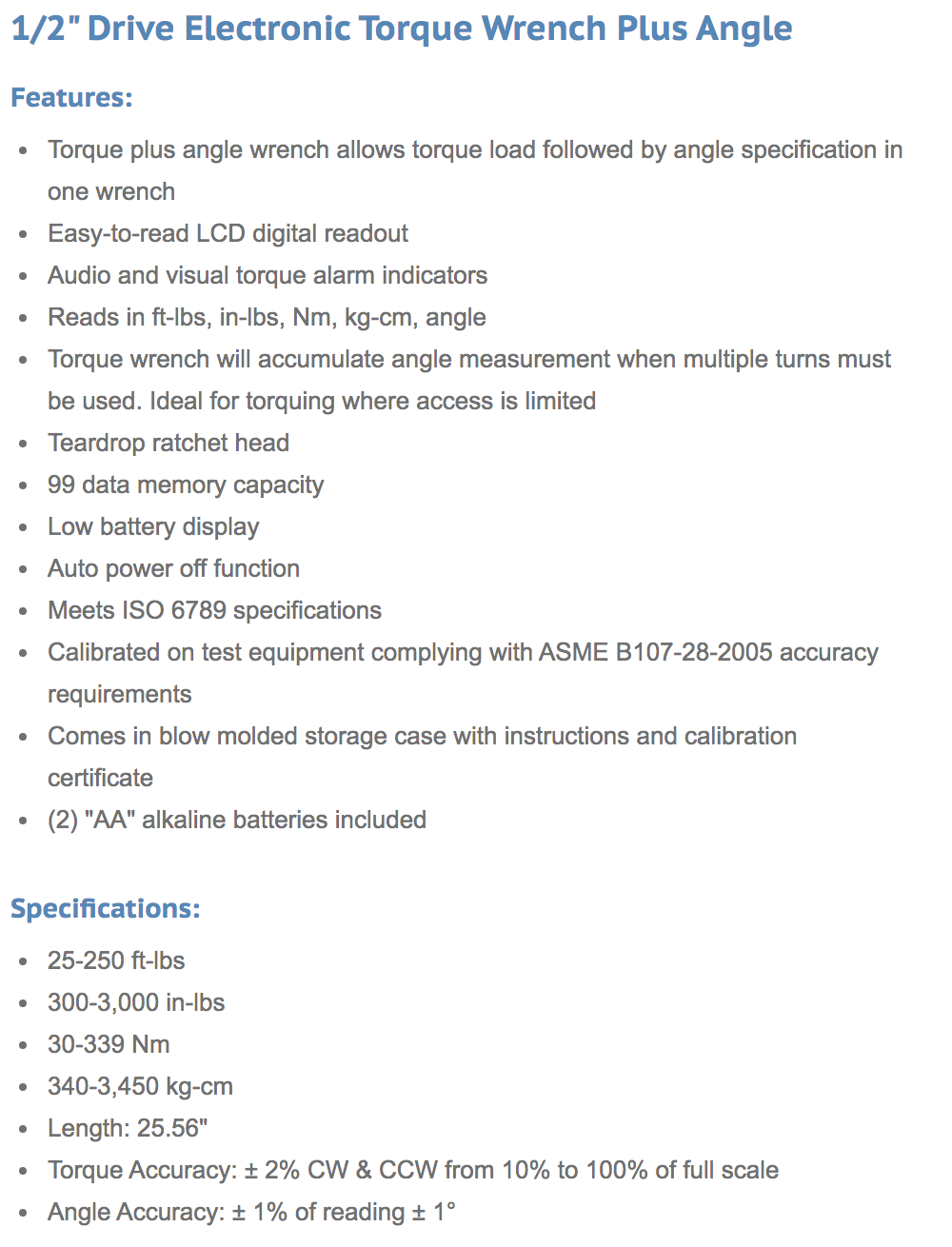

ATD-12550 1/2" Drive Electronic Torque Wrench Plus Angle

Features:
  • Torque plus angle wrench allows torque load followed by angle specification in one wrench
  • Easy-to-read LCD digital readout
  • Audio and visual torque alarm indicators
  • Reads in ft-lbs, in-lbs, Nm, kg-cm, angle
  • Torque wrench will accumulate angle measurement when multiple turns must be used. Ideal for torquing where access is limited
  • Teardrop ratchet head
  • 99 data memory capacity
  • Low battery display
  • Auto power off function
  • Meets ISO 6789 specifications
  • Calibrated on test equipment complying with ASME B107-28-2005 accuracy requirements
  • Comes in blow molded storage case with instructions and calibration certificate
  • (2) "AA" alkaline batteries included
Specifications:
  • 25-250 ft-lbs
  • 300-3,000 in-lbs
  • 30-339 Nm
  • 340-3,450 kg-cm
  • Length: 25.56"
  • Torque Accuracy: 2% CW & CCW from 10% to 100% of full scale
  • Angle Accuracy: 1% of reading 1

Available Downloads

Owner's Manual
