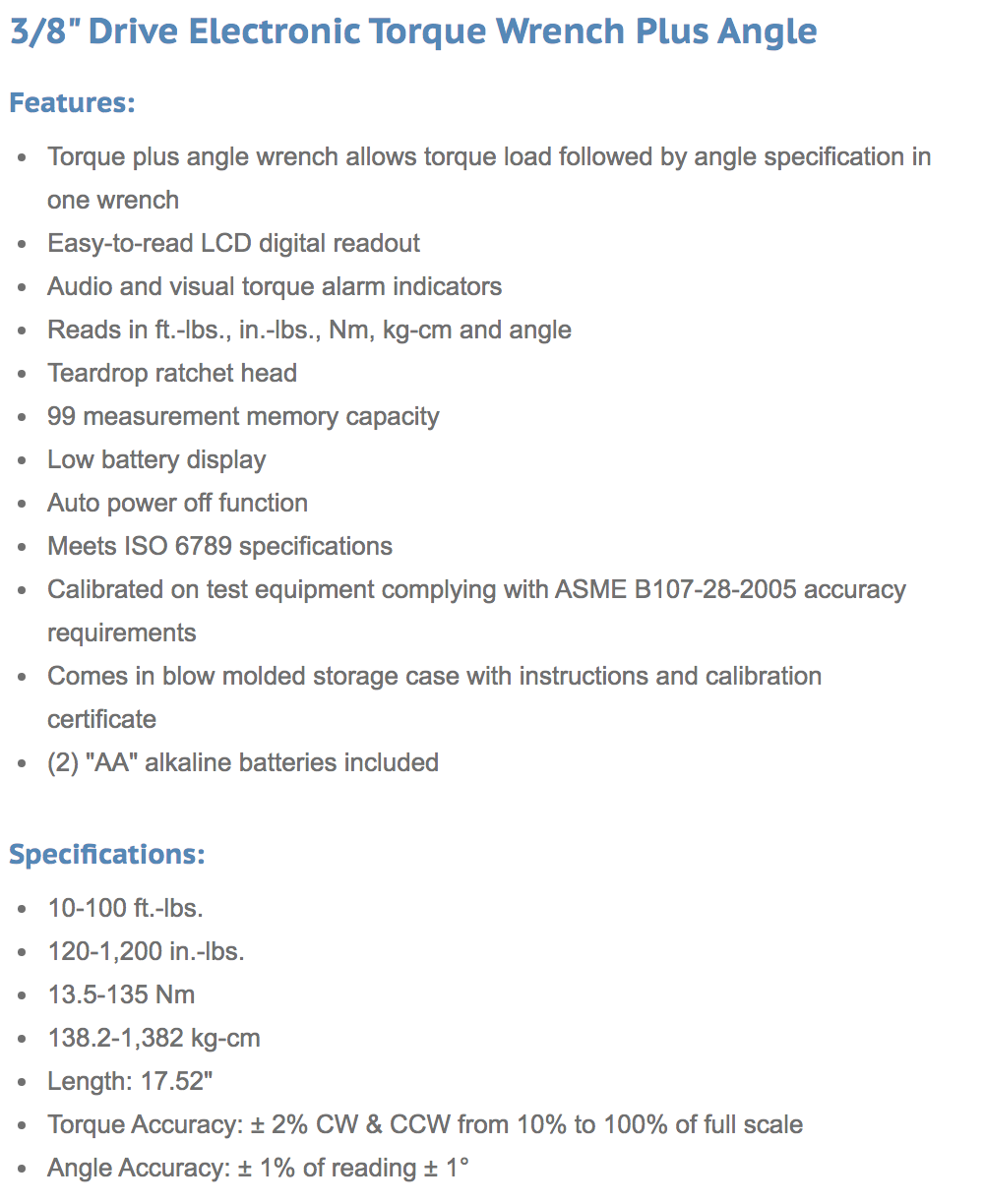

ATD-12549 3/8" Drive Electronic Torque Wrench Plus Angle
Features:
  • Torque plus angle wrench allows torque load followed by angle specification in one wrench
  • Easy-to-read LCD digital readout
  • Audio and visual torque alarm indicators
  • Reads in ft.-lbs., in.-lbs., Nm, kg-cm and angle
  • Teardrop ratchet head
  • 99 measurement memory capacity
  • Low battery display
  • Auto power off function
  • Meets ISO 6789 specifications
  • Calibrated on test equipment complying with ASME B107-28-2005 accuracy requirements
  • Comes in blow molded storage case with instructions and calibration certificate
  • (2) "AA" alkaline batteries included
Specifications:
  • 10-100 ft.-lbs.
  • 120-1,200 in.-lbs.
  • 13.5-135 Nm
  • 138.2-1,382 kg-cm
  • Length: 17.52"
  • Torque Accuracy: 2% CW & CCW from 10% to 100% of full scale
  • Angle Accuracy: 1% of reading 1

Available Downloads

Owner's Manual
