ATD Tool Storage

Tool Storage Roller Cabinets, Value Series


ATD-7172


56" 10-Drawer Roller Cabinet

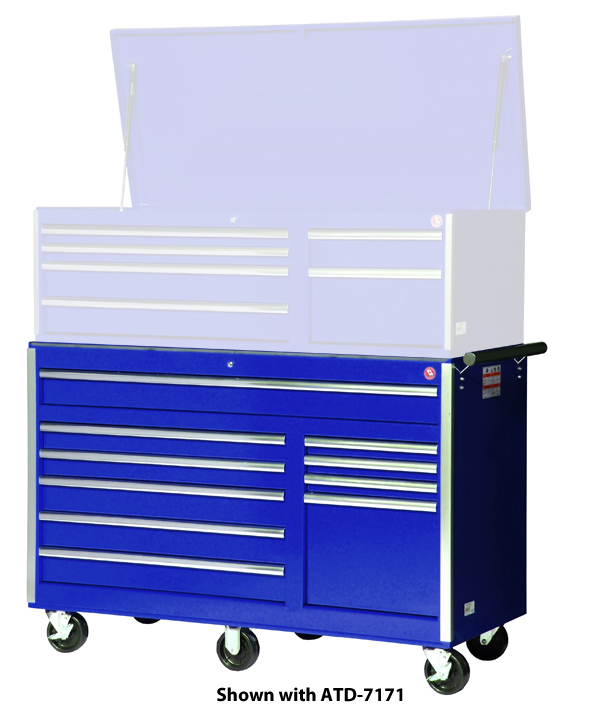

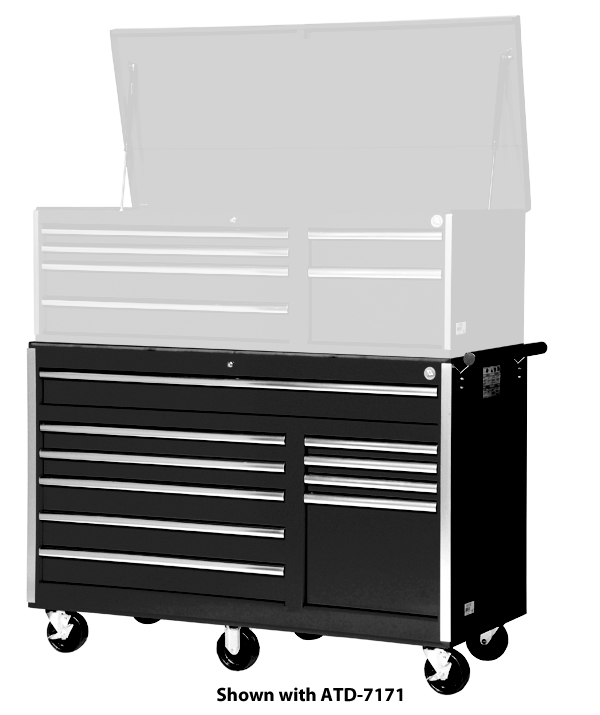

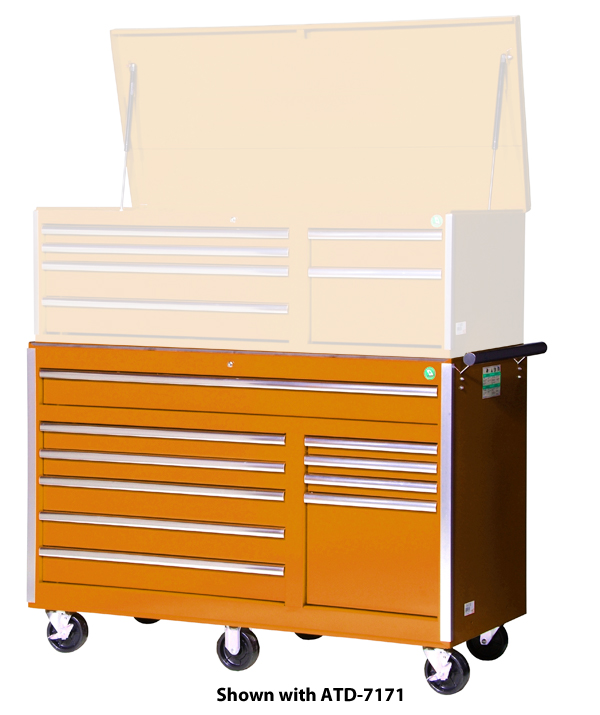

Shown in photo with the ATD-7171 6-Drawer Top Chest
Features:
  • Heavy-gauge, double-wall steel construction
  • Ball bearing slides on all drawers
  • High gloss, scratch-resistant powder coat paint
  • Protective MDF work surface
  • Precut drawer liners included
Specifications:
  • Overall: 56-5/16" W x 24" D x 39-3/8" H
  • (1) Drawer: 51-3/8" W x 21" D x 3-1/2" H
  • (2) Drawers: 34-1/8" W x 21" D x 1-5/8" H
  • (2) Drawers: 34-1/8" W x 21" D x 3-11/16" H
  • (1) Drawer: 34-1/8" W x 21" D x 4-1/4" H
  • (3) Drawers: 15" W x 21" D x 11/16" H
  • (1) Drawer: 15" W x 21" D x 11-1/8" H
  • Wheels: 5" x 2" (4 swivel, 2 rigid)
  • Storage Capacity: 12,575 cu.in
  • Load Rating: 2,400 lbs.
  • Load Rating per Drawer: 52 to 180 lbs.
  • Shipping Weight: 359 lbs.
Available Colors:
  • ATD-7172RD - Red
  • ATD-7172BK - Black
  • ATD-7172BU - Blue
  • ATD-7172OR - Orange

Available Downloads

Specification Sheet
