A/C & Cooling Systems Coolant Tools


ATD-3705


Coolant Refractometer




  • High-quality refractometer offers a fast, easy way to test the freezing point of coolant/anti-freeze
  • Works with Ethylene or Propylene Glycol anti-freeze
  • Not for use with OAT coolants
  • Also measures battery acid gravity to determine battery life
  • Automatic temperature compensation
  • Large, easy-to-read graphics and high-contrast lens
  • Adjustable viewfinder; rugged, steel body construction

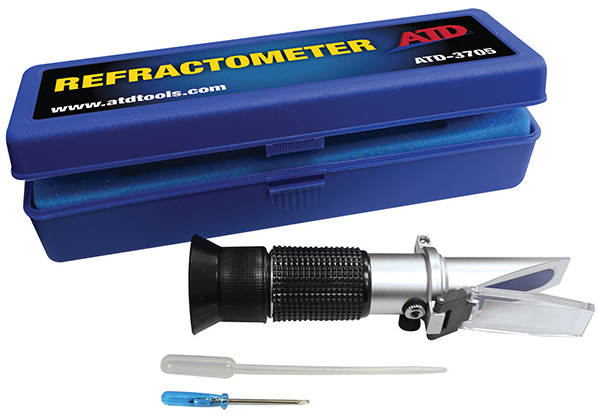

  • Includes storage case, fluid dropper, cleaning cloth and mini screwdriver

Specifications:

Range:
  • Ethylene Glycol: -84˚F to 32˚F
  • Propylene Glycol: -60˚F to 32˚F
  • Battery: 1.100-1.400 Specific Gravity
Minimum Division:
  • Ethylene Glycol: 5˚F
  • Propylene Glycol: 5˚F
  • Battery: 0.01 Specific Gravity
Accuracy:
  • Ethylene Glycol: ±5˚F
  • Propylene Glycol: ±5˚F
  • Battery: ±0.01 Specific Gravity

Available Downloads

Instruction Manual
