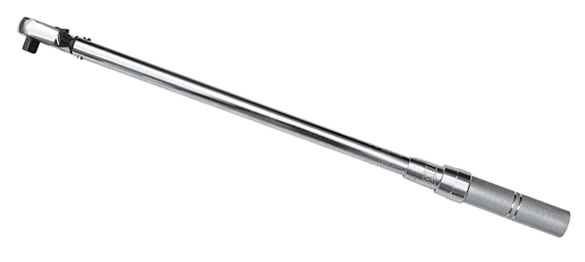

ATD

Features:

• Knurled handle for a non-slip grip
• Easy-to-read stamped scale on beam and thimble collar
• Positive lock with spring-loaded pull down lock ring
• Fast, accurate and easy to set
• Teardrop ratchet head
• 36-tooth gear
• Meets ISO 6789 specifications
• Calibrated on test equipment complying with ASME B107.300-2010 accuracy requirements

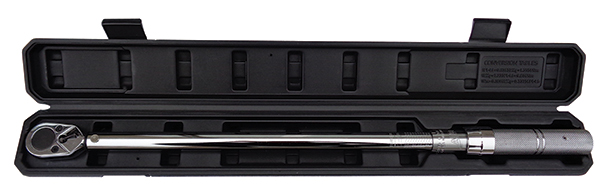

• Comes in blow-molded storage case with instructions and calibration certificate

Specifications:

• 50-250 ft.-lbs.
• 74.6 - 345.7 NM
• Accuracy: ± 4% CW from 20% to 100% of full scale
• Length: 25-1/2"

Available Downloads

Also Available Separately:

• PRT12504A-HK - Head Repair Kit for ATD-12504A
